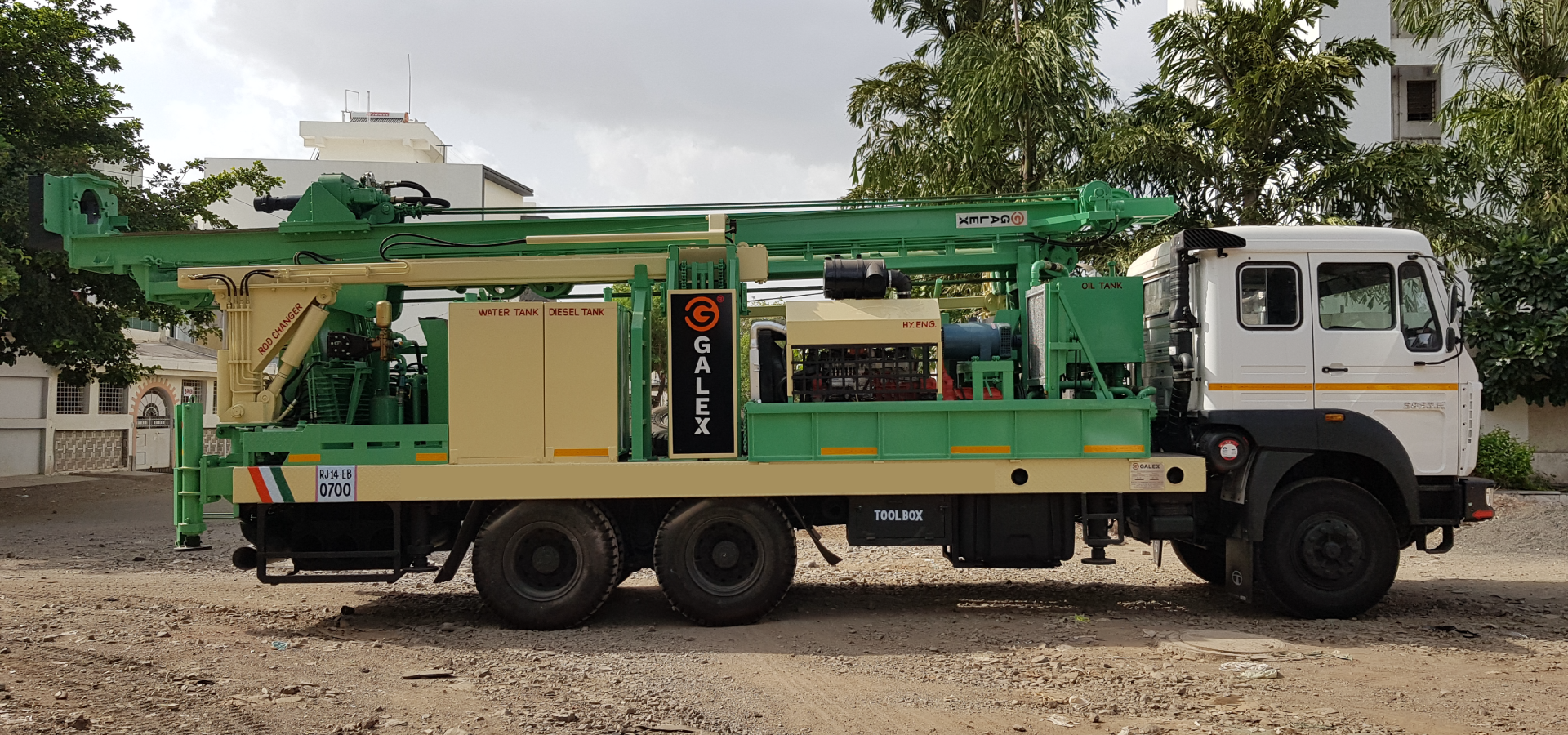

MODEL : GALEX 751RC
DRIL DIAMETER
(6.0" - 16.0")**
DRILLING DEPTH
Up to 1500 feet**
HYDRAULIC OIL TANK CAPACITY
600 LTRS
MAST CAPACITY
Approx. 27 feet (8.23 mtrs)
MAST HEIGHT
Approx. 9.34 mtrs
MAST CONSTRUCTION
10-inch structural channel supported by square pipe.
WATER PUMP
150 LPM
HYDRAULIC JACK
140mm- 6 nos, 140mm- 1 nos, mast cylinder 200mm, 75mm back out cylinder.
HYDRAULIC WINCH
Attached gearbox powered by hydraulic motor, capacity up to 1 ton.
HAMMER VICE
Heavy structural of plates with 3 to 4 attachable jaws, 150mm, 160mm, 180mm, and 200mm hammer may be opened.
APPLICATION
Water well drilling, mining application.
HYDRAULIC DRIVE SYSTEM
160cc bent axis piston pump and 17gpm gear pump permco usa driven by pto gearbox through diesel power engine 235hp.
ROTARY HEAD GEARBOX
Indigenous rotary head design, omt400 hydraulic motor used for drive gearbox with torque of 250nm(max)* at 2000psi.
HYDRAULIC CIRCUIT
Indigenous hydraulic circuit design, pressure up to 3500psi.
ROD CHANGER
Indigenous development of hydraulic control rod changer for less manpower.
